Climate Ready Fabrics offer complete roller blind systems integrated with our sustainable roller shade fabrics by partnering with Australian-based solar shading manufacturers.
The below information is a reference guide for the various roller blind hardware systems and accessory options available. For more detailed information on a system to suit your project specifications contact us
Single Roller Blind System

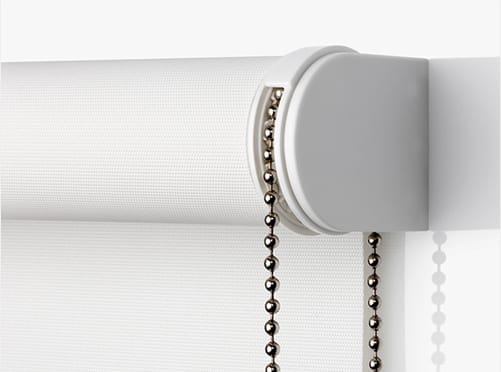

Chain Operated Roller Shade
Chain operated roller blind systems are manually controlled by lowering and raising the shading fabric by chain drive operation.
Roller tube diameter: 45mm / 60mm
Roller tube material: aluminium
Chain material: brass nickel plated / stainless Steel

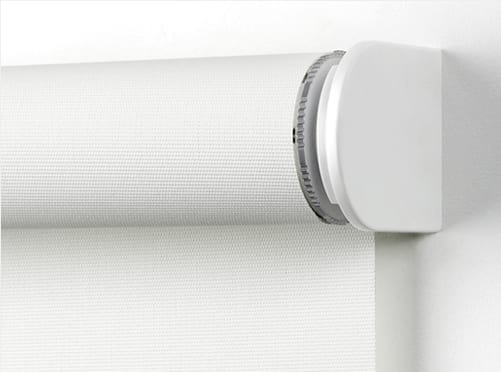

Motorised Roller Shade
Motorised roller blind systems offer ease of operation with simple up-and-down functionality using a wall switch, remote control, or via integrated intelligent automation systems.
Roller tube diameter: 45mm / 60mm / 80mm
Roller tube material: Aluminium
Control options: switch / remote / integrated automation
Motor: dependent on roller shade system width and fabric drop

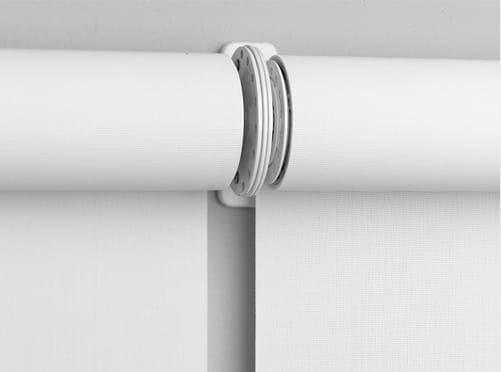

Linked Roller Shade
Multiple roller blinds can be linked and operated via a single control unit with minimal light gap between each
roller shade. Roller Blinds can be linked side by side and with the option of 90 degree angles.
Roller tube diameter: 45mm / 60mm / 80mm
Roller tube material: Aluminium
Control options: switch / remote / integrated automation
Motor: dependent on roller shade system width and fabric drop
Dual Roller Blind System

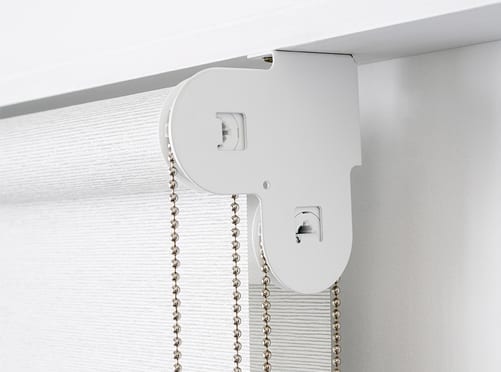

Dual Shade
A dual roller blind system offers the flexibility of two shading options in the one system. By combining the use of a light blackout fabric and a translucent or open-weave fabric for glare control offers two shading options in the one system offering a convenient solution for multiple shading concerns.
Roller tube diameter: 45mm / 60mm
Roller tube material: aluminium
Control options: chain / switch / remote / integrated automation

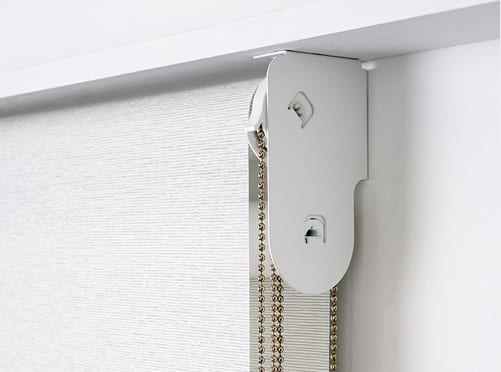

Dual Shade – Slim
The slim dual roller blind system offers a more compact version of the standard dual system offering the flexibility of two shading options in the one system.
Roller tube diameter: 45mm / 60mm
Roller tube material: aluminium
Control options: chain / switch / remote / integrated automation

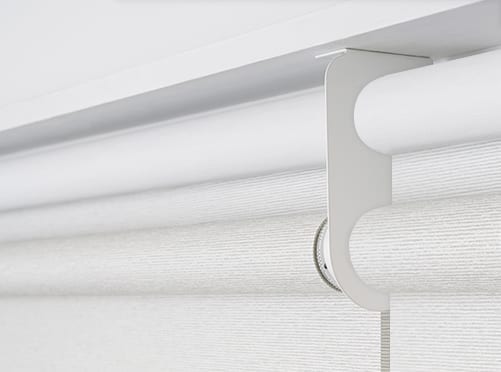

Linked Dual Shade
Dual roller blinds can be linked and operated via a single control unit with minimal light gap between each
roller shade.
Roller tube diameter: 45mm / 60mm
Roller tube material: aluminium
Control options: chain / switch / remote / integrated automation
Headbox Options

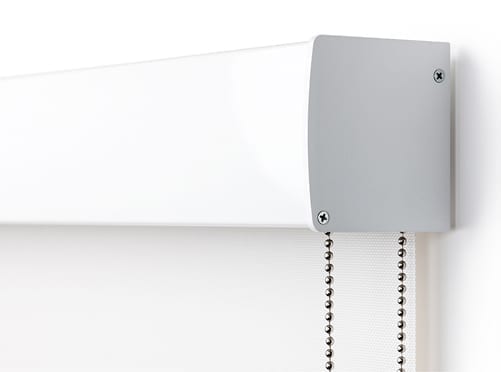

Headbox
A headbox offers an elegant finish to a roller shade system by covering the roller shade drum and components. Headboxes can be matched to interior paint finishes.
Size: 85mm / 100mm / 120mm
Material: Aluminium
Colours: white / black (standard), custom colours available on request

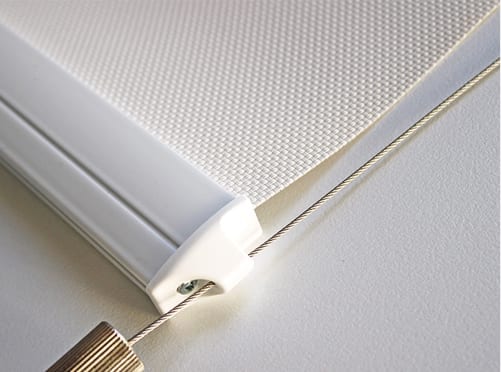

Headbox with Cable Guides
A headbox with cable guides provides secure tension for long fabric drops.
Size: 85mm / 100mm / 120mm
Material: Aluminium
Colours:white / black (standard), custom colours available on request
Cable: 1.2mm stainless steel tensioning cable

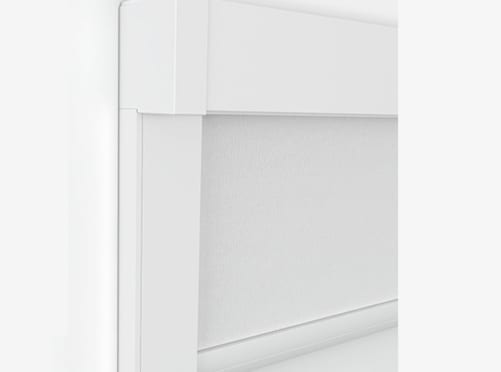

Blackout Roller Shade
Blackout roller blind systems feature a headbox which covers the roller shade drum and additional option of side channels for complete 100% light blackout.
Roller tube diameter: 45mm / 60mm
Roller tube material: Aluminium
Control options: switch, remote, integrated automation
Motor: dependent on roller shade system width and fabric drop
Headbox material: aluminium
Headbox colours: white / black (standard. Custom colours available)
Side channel material: aluminium
Side channel colours: white / black (standard. Custom colours available)
Base rail: Blackout systems only use large rectangular shaped base rails due to sliding functionality with blackout side channels. Colour options are white / black (standard). Custom colours available
Hardware Options

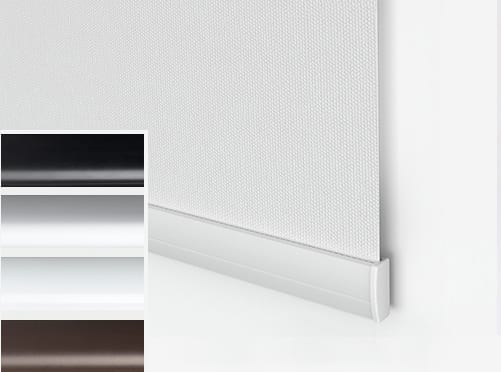

Baserail
A standard feature on all roller shade systems in a D shape (standard) and additional sizes and colours on request.
Material: aluminium
Colours: black / clear anodised / white / bronze (standard). Custom colours available on request
Profiles: D shape / oval / round / large rectangular
* Blackout systems only use large rectangular shaped base rails due to sliding functionality with blackout side channels.

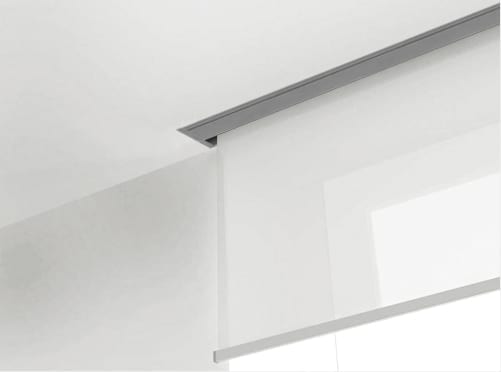

Recess Pocket and Closure Panel
A closure panel is a aluminium plate which closes off the recess pocket for a roller shade to be completely hidden.
Width: 60mm / 80mm
Length: set at size of the closure ceiling recess space
Material: aluminium
Colours: white / black (standard). Custom colours available on request

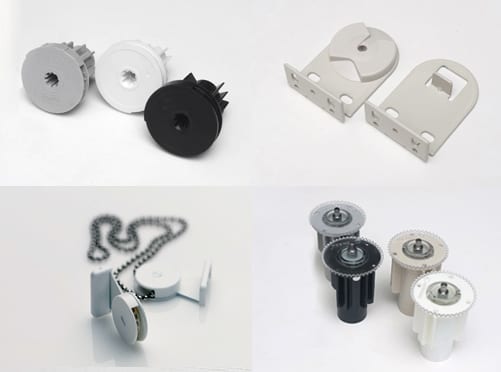

Roller Shade Accessories
Each roller blind system can be further customised with additional finishes, components, controls and accessories to change or enhance the appearance and functionality of the system.
